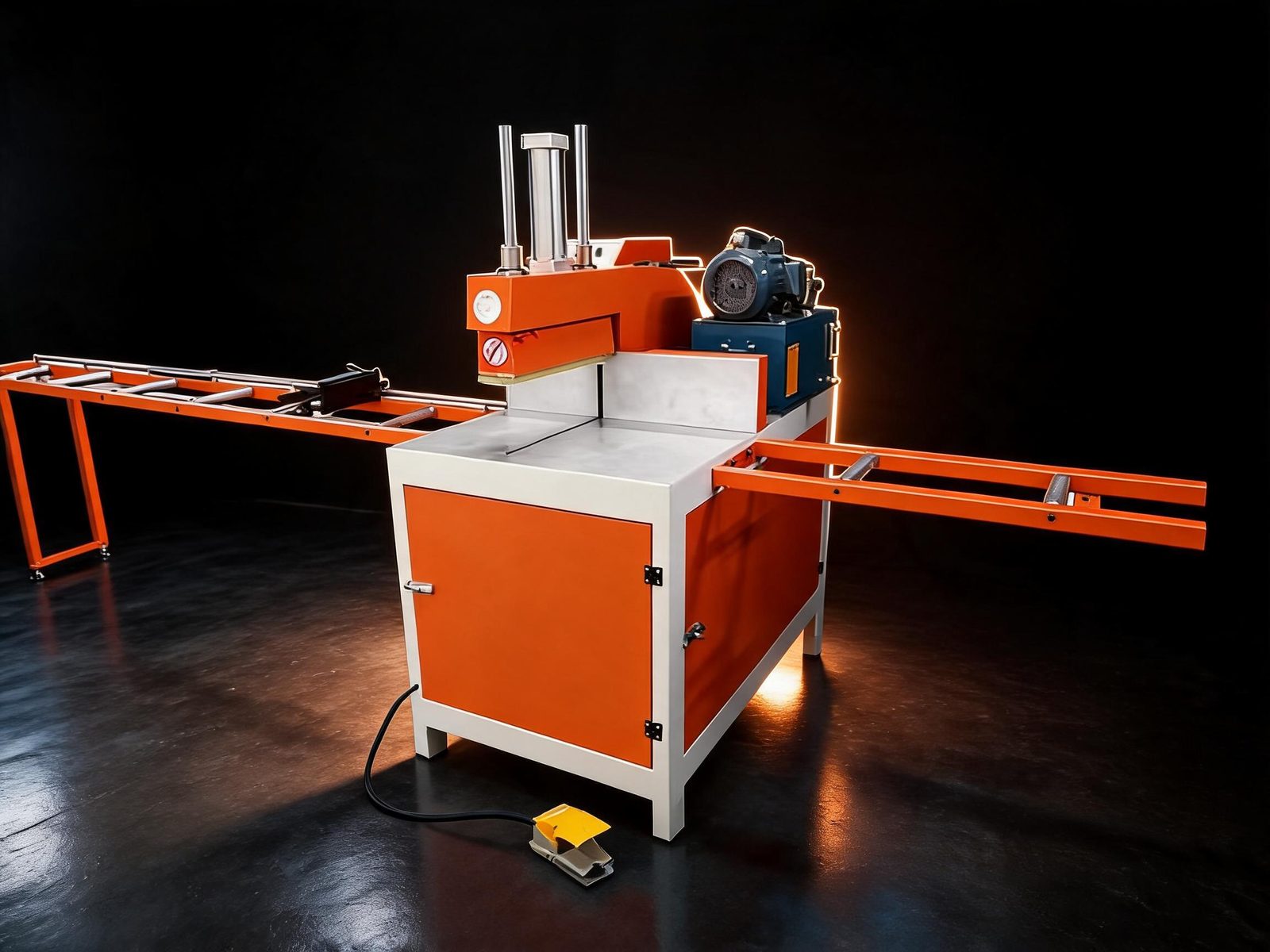

Hydraulic Shearing Machine (90 Degree / Fully Automatic)
Straight cuts. Fast.
Overview
A hydraulic cutter cuts profiles to length at 90°. Fully automatic version available.

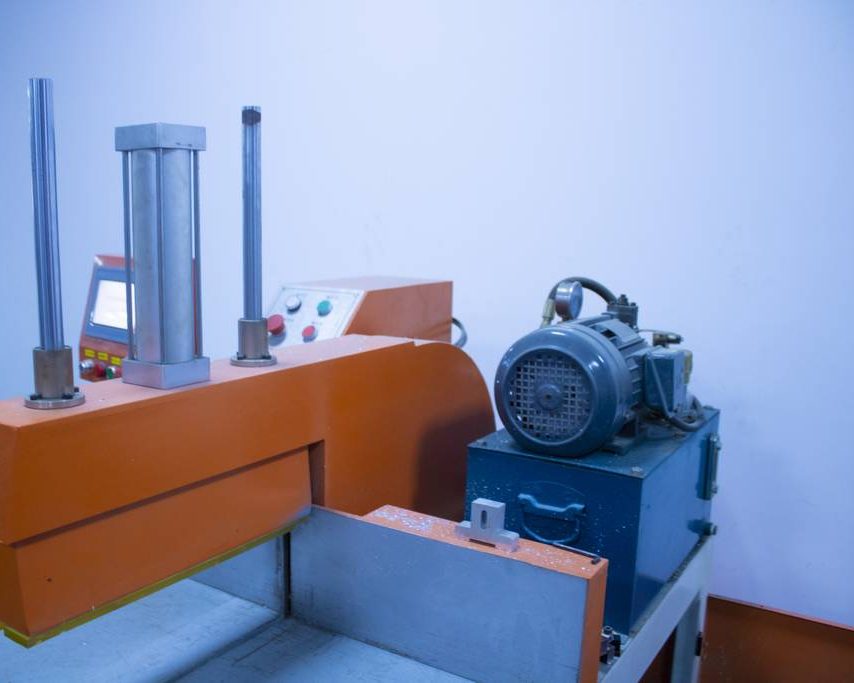

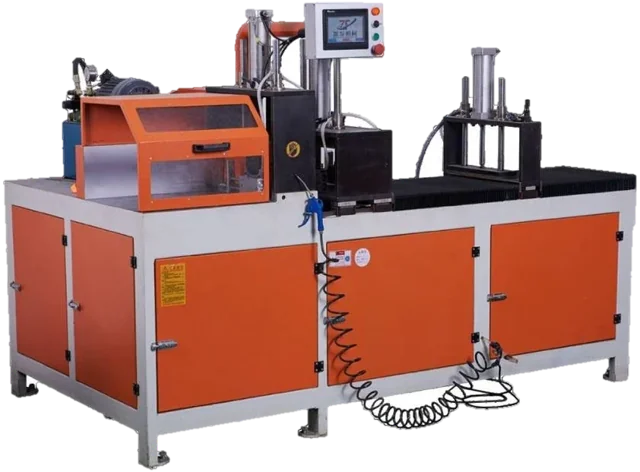

A hydraulic cutter head cuts the profile straight through at 90°. The fully automatic version handles long runs with less hand work.
Good for · Workshops that cut many straight pieces every day.
Used for
- Cutting profiles to length
- Repeat 90° cuts in batches
- Preparing pieces before machining
Specifications
| Motor power | 2.2 kW + 1.5 kW |
|---|---|
| Voltage | 220 V or 380 V |
| Cutting angle | 90° |
| Saw blade (mm) | 405 × 25.4 × 3.5, 120T |
| Machine size (L×W×H, mm) | 750 × 1220 × 1600 (90° model) |
From the machine nameplate. Final setup confirmed with your quote.
Questions buyers ask.
Can it cut my profile?
Send us a drawing or photo of your profile with sizes. We confirm before you order.
90 degree or fully automatic?
The 90 degree model is the simple choice. Fully automatic is for high volume. Tell us your daily output and we suggest one.
More in this line
Ask for spec sheet and price
Tell us the machine, your country and your profiles. We reply with the spec sheet, price and shipping cost.
