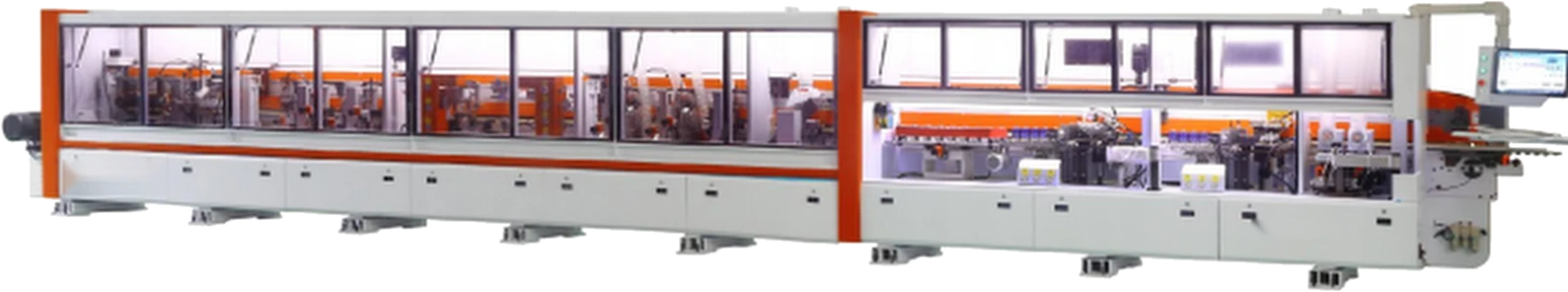

868 High-Speed PUR Edge Banding Machine
PUR glue. Every edge in one pass.
Overview
Track-feed PUR edge bander for honeycomb, carbon crystal, PVC and bamboo-fiber panels and panel furniture.
The track carries the panel through every station: pre-milling, heating lamp, PUR gluing, belt pressing, end trimming, rough and fine trimming, four-motor corner rounding, edge and flat scraping, cleaning, waxing and two buffing stations. The PUR glue pot needs no cleaning.
Good for · Aluminium furniture and cabinet factories that edge panels in volume.
Used for
- Aluminium honeycomb panels
- Carbon crystal and PVC panels
- Cabinet and wardrobe panels
Specifications
| Model | ZFSBL868L |
|---|---|
| Feed speed | 20 / 24 / 32 m/min |
| Panel width | 60 mm and up |
| Panel thickness | 10 – 60 mm |
| Edge band width | 13 – 65 mm |
| Edge band thickness | 0.4 – 3 mm |
| Glue | PUR, cleaning-free glue pot |
| Pressure beam | Automatic lifting |
| Total power | 28 kW |
| Machine size (L×W×H, mm) | 11000 × 1000 × 1800 |
| Weight | 4600 kg |
| Screen | 19 inch touch screen |
From the factory spec sheet. Final setup confirmed with your quote.
