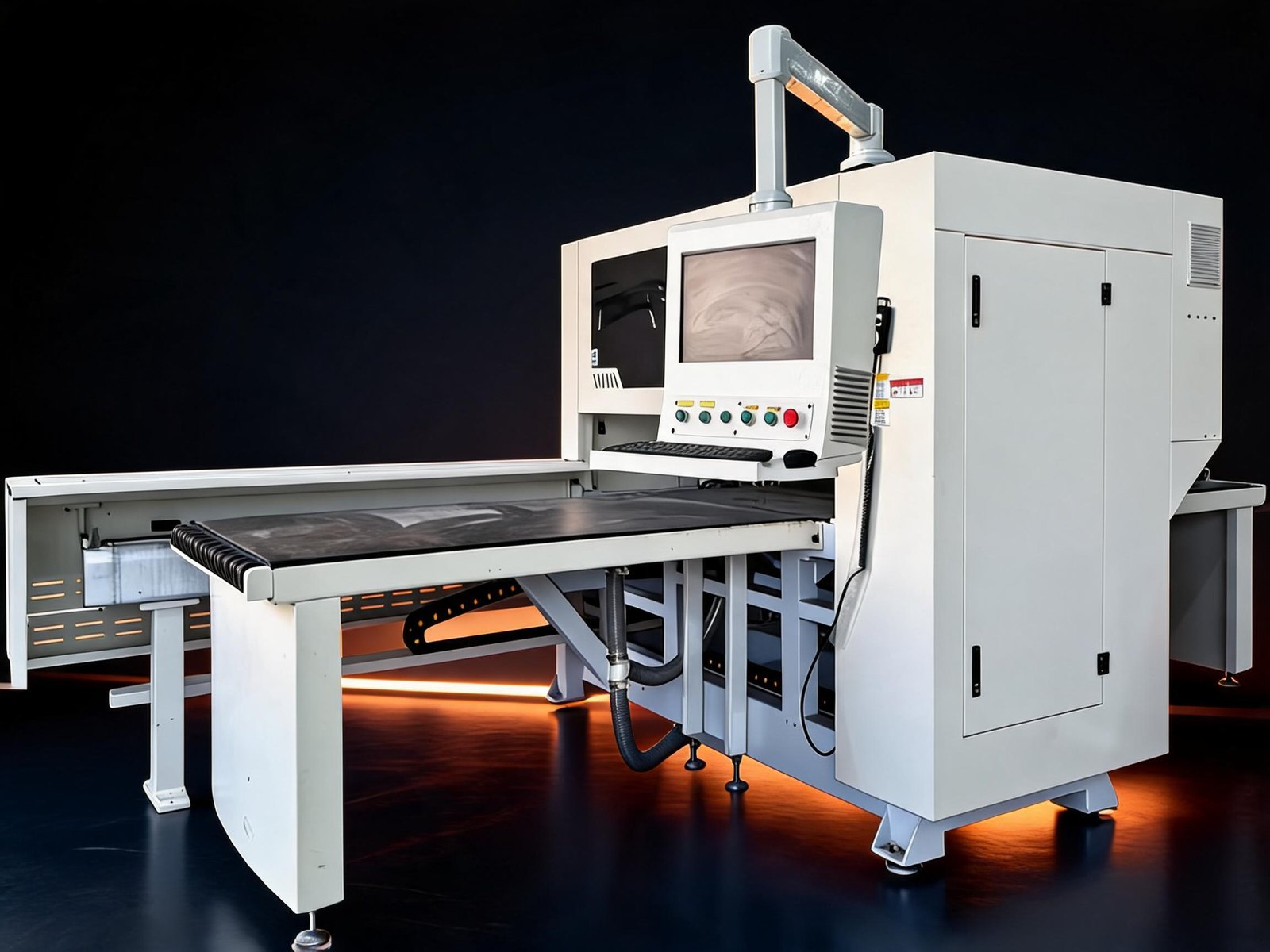

Stainless Steel Honeycomb Panel Laser Cutting Machine
Both faces. One machine.
Overview
Laser cutting centre for stainless steel honeycomb panels. Cuts and opens holes on both faces, with nesting software built in.
Put the panel on the air-float table and the side clamps hold it. The software splits the order into parts and lays them out, and two lasers cut from both faces.
Good for · Factories making stainless steel honeycomb cabinets and panels.
Used for
- Stainless steel honeycomb panels
- Cabinet and wardrobe panels
- Wall panels
Specifications
| Laser power | 1.5 kW × 2 |
|---|---|
| Working area | 1250 × 2800 mm |
| Panel thickness | 0.3 – 20 mm |
| Cutting speed | Up to 60 m/min |
| Smallest part | 150 × 150 mm |
| Total power | 25 kW |
| Voltage | 380 V |
| Table | Air-float, 930 mm high |
| Screen | 19 inch |
From the factory spec sheet. Final setup confirmed with your quote.
Questions buyers ask.
Can it handle my panel or profile size?
Tell us your sizes and what you make. We confirm the setup before we quote.
